Create Charts in Google Sheets™ with Chart Wizard
Select a table, compare explainable chart recommendations, preview the result, and insert a chart into the current sheet or a Charts Dashboard.
Chart Wizard turns a selected Google Sheets™ table into a useful chart without making you choose every chart setting from scratch. It examines the table’s headers, labels, and numeric values, then recommends chart types that fit the shape of the data.
Each recommendation explains why it fits the selected data. Chart Wizard does not use AI, consume AI credits, or send your sheet data to our servers.
Отримати додаток безкоштовно
Text To Table Converter
Install Text To Table Converter free to analyze a selected table and create a recommended chart in Google Sheets™.
Google Sheets™ only
Chart Wizard is a first-class Sheets feature in the sidebar and Extensions menu. Select a table with at least two populated rows before opening it.
On this pageTry it with monthly financial data
Try it with monthly financial data
Copy the full-year data below and paste it into cell A1. This preview shows the first four rows. The copied values are plain numbers so Google Sheets can recognize them in every locale; format columns B through D as currency after pasting.
Month Revenue Expenses Profit
January 42000 31500 10500
February 45500 32800 12700
March 48000 34200 13800
April 46500 35000 11500
May 52000 36400 15600
June 56500 38000 18500
July 59000 39500 19500
August 57500 40200 17300
September 62000 41000 21000
October 65500 43200 22300
November 69000 45000 24000
December 75000 49500 25500Проведіть убік, щоб побачити всі стовпці
| Month | Revenue | Expenses | Profit |
|---|---|---|---|
| January | $42,000 | $31,500 | $10,500 |
| February | $45,500 | $32,800 | $12,700 |
| March | $48,000 | $34,200 | $13,800 |
| April | $46,500 | $35,000 | $11,500 |
Create the chart

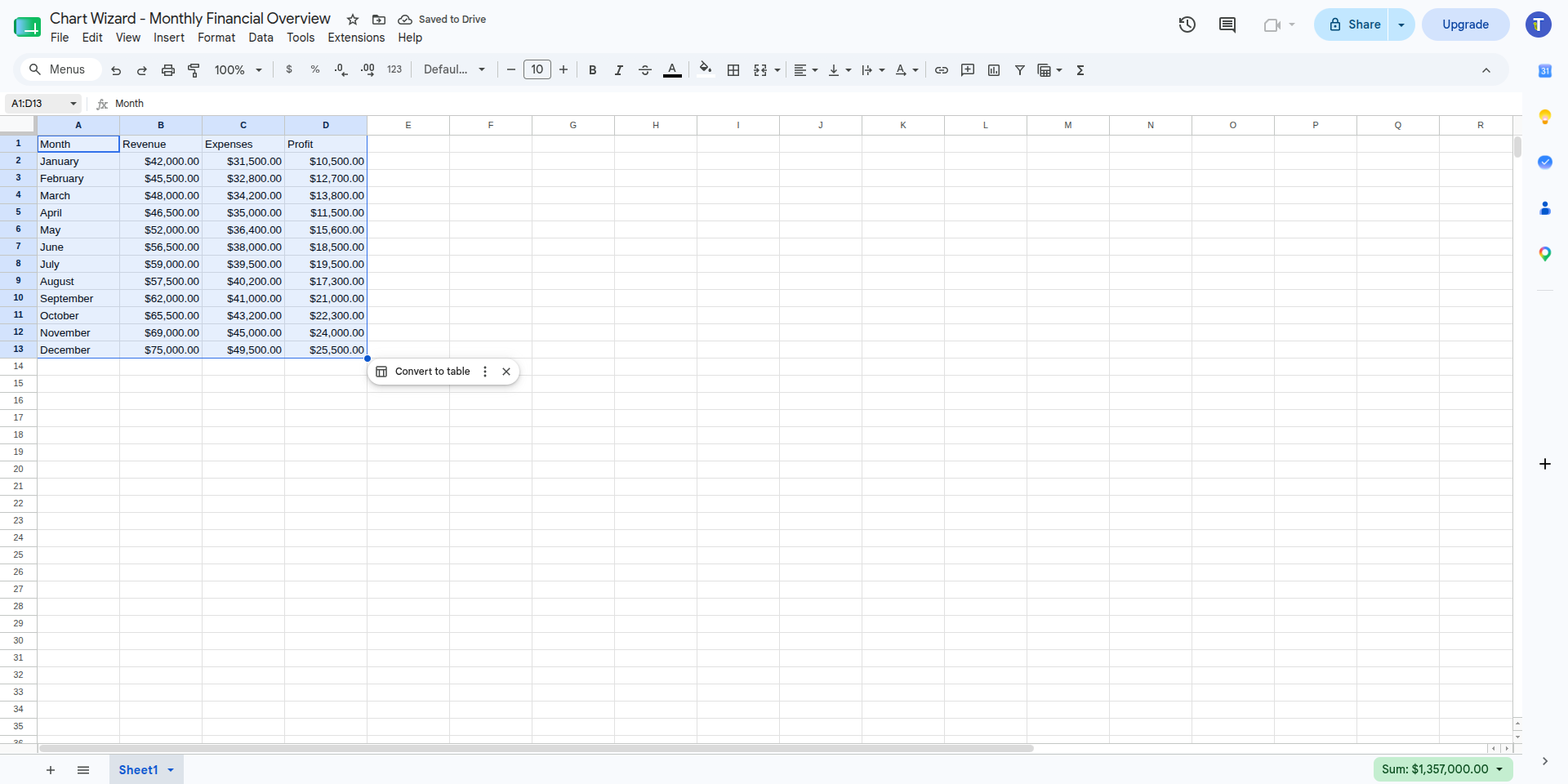

- 1Select cells A1:D13, including the header row.
- 2Open Text To Table Converter. Choose Chart Wizard from the Sheets tools on the sidebar home, or choose Extensions > Text To Table Converter > Chart Wizard.
- 3Confirm the selected range and review the recommendations. Choose a recommendation to update the preview.
- 4Open Customize chart if you want to change the chart type, title, label column, value columns, header setting, stacking, or legend position.
- 5Choose Current sheet to place the chart beside the table, or Charts Dashboard to create or reuse a dedicated chart sheet.
- 6Click Insert chart. From the success screen, remove the new chart if it is not right or choose Create another.

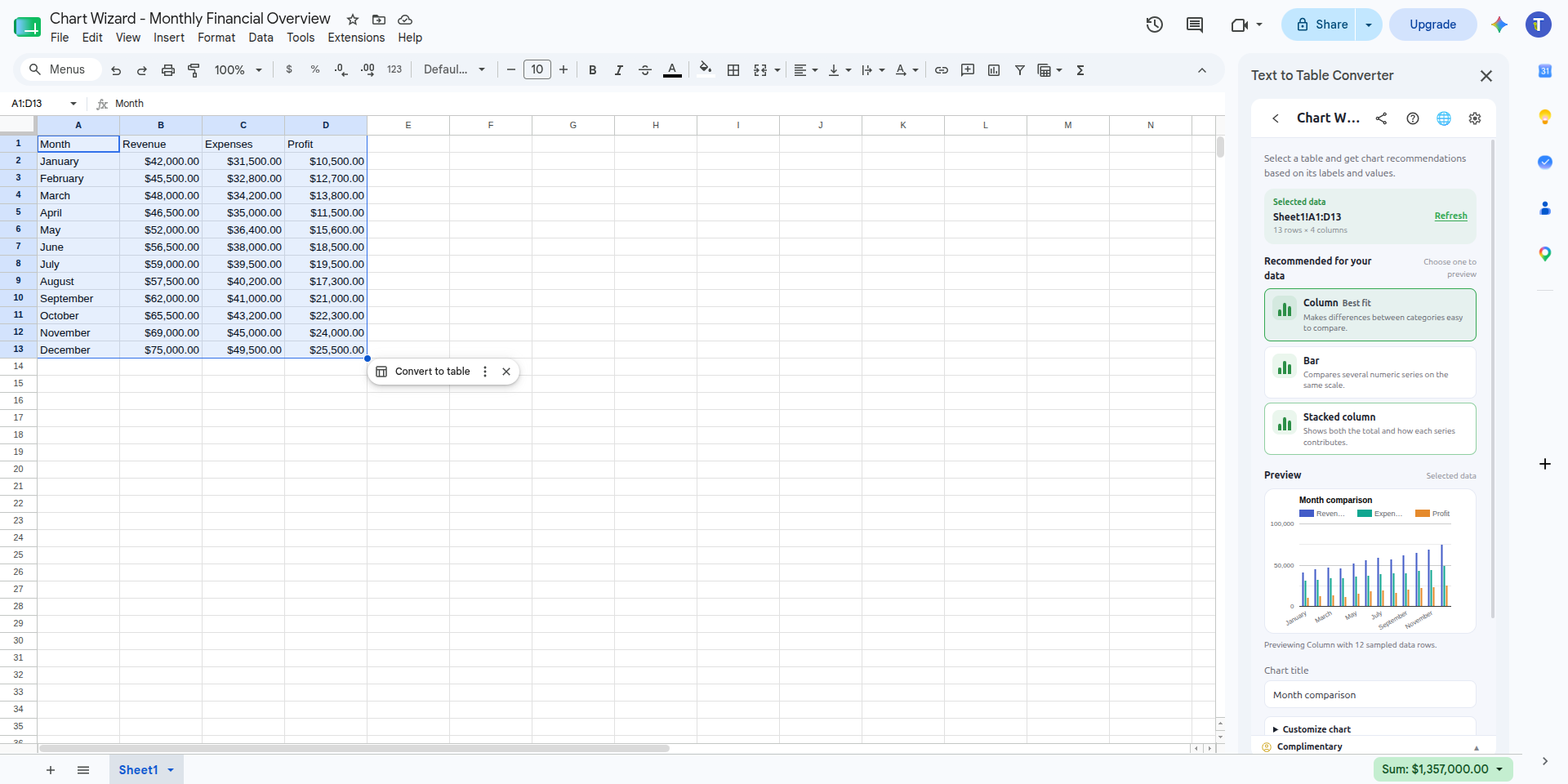

What Chart Wizard recommends for this example
Month is detected as the label column, while Revenue, Expenses, and Profit are detected as numeric series.
- Best fit: a column chart titled “Month comparison” for comparing all three values across the 12 months.
- Alternative: a bar chart for another side-by-side comparison of the same series.
- Composition: a stacked column chart for showing the total and how each series contributes.
- To emphasize movement across the year, choose Line from Customize chart and keep Month as the label column.
Choose only the series you need
For a simpler chart, clear Expenses and Profit under Value columns to chart Revenue by itself.
How recommendations work
- Dates with numeric values favor line charts for change over time.
- Categories with numeric values favor column or bar charts for comparison.
- A small set of positive category values can produce a pie-chart recommendation.
- Numeric pairs can produce a scatter chart, while one numeric column can produce a histogram.
- Every recommendation includes a short reason. You can still choose another compatible chart type.
Selection, limits, and troubleshooting
- If only one cell is selected, Chart Wizard can find the nearby data region and asks before using it.
- The selection must contain at least two populated rows and at least one numeric column.
- A selected range can contain up to 10,000 rows and 50 columns, with up to 10 numeric series in one chart.
- For a very large selection, the preview may use part of the data. The inserted chart still uses the full selected range.
- If the table changes while Chart Wizard is open, select the current table and click Refresh.
- Column, bar, line, pie, scatter, and histogram charts are supported.
Creates new charts
Chart Wizard creates embedded charts from the selected range. Editing an existing chart is not part of the current release.

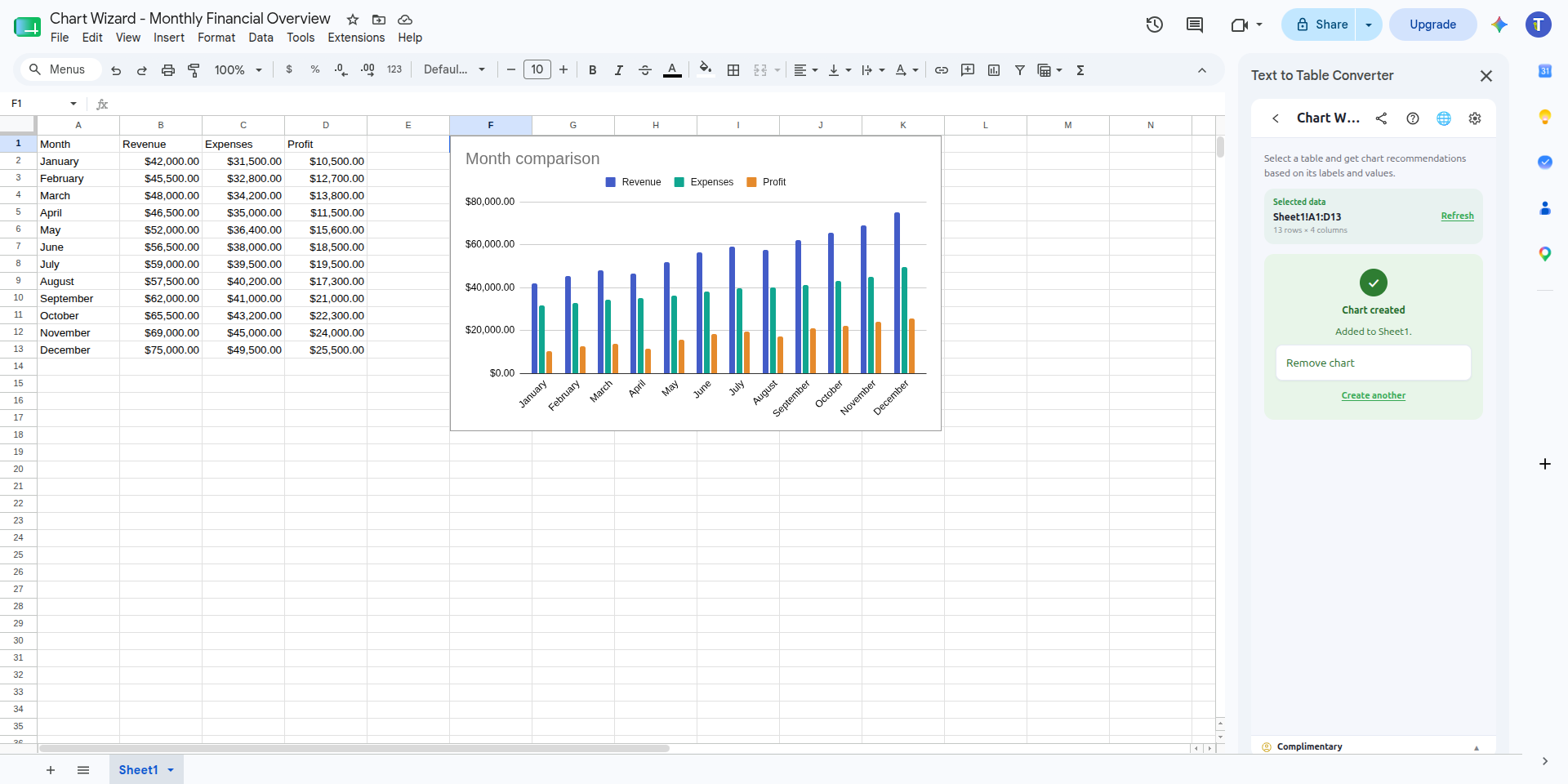

Your chart is ready
The chart is now embedded in your chosen destination and connected to the selected source range.
- Review the chart title, labels, and legend in the sheet.
- Use Create another in Chart Wizard to visualize a different set of columns.
- Keep related charts together by choosing Charts Dashboard as the destination.
A useful next step
Try charting Revenue by itself, then compare that focused view with the three-series chart.
